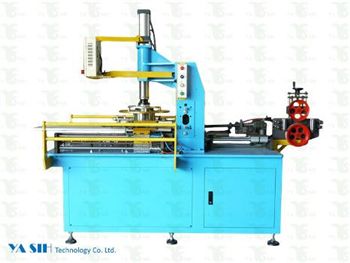

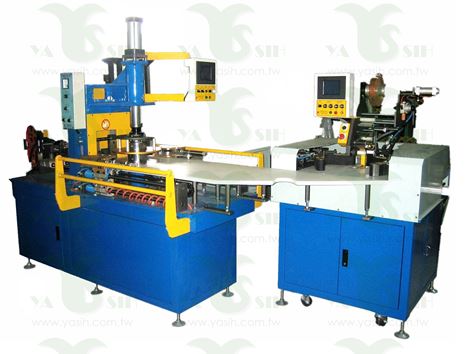

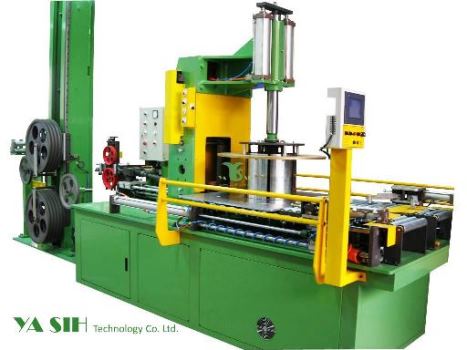

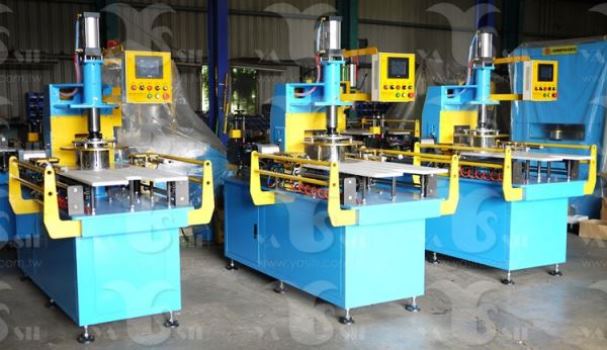

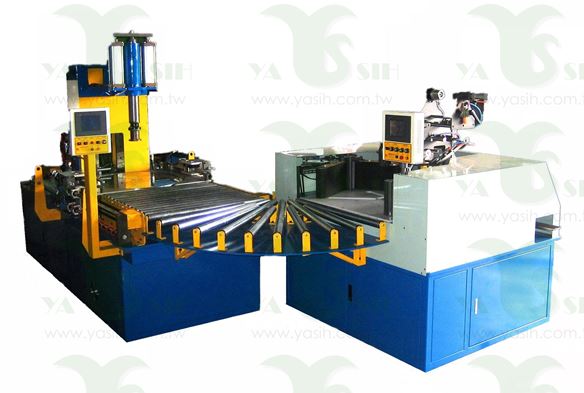

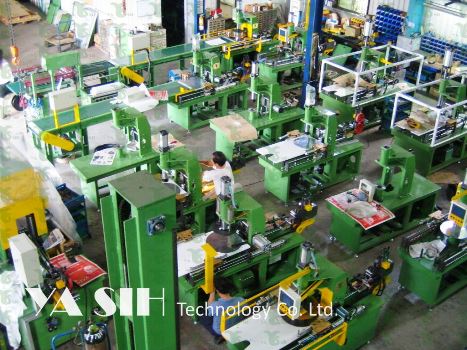

● Application
A) Horizontally coiling wires from an extrusion line or pay off line.

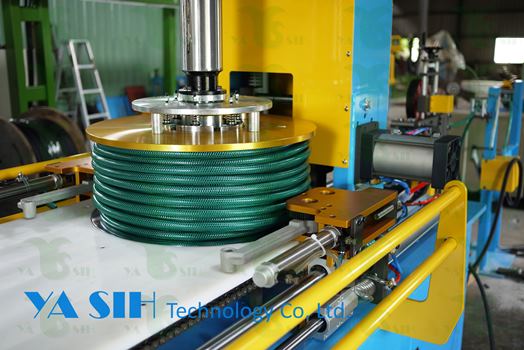

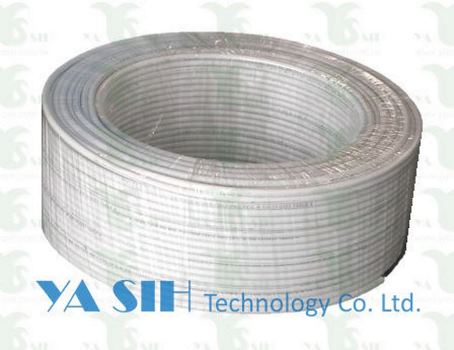

B) The main function of machine includes: length counting, wire feeding to coiling head, wire coiling, cutting wire when the pre-set length is reached, and move the finished coil to the working plate.
● Specification Table
|
Model |
Height (H)
(mm) |
Outside Dia.
O.D. (mm) |
Inside Dia.
I.D. (mm) |
Wire/Cable Diameter (mm) |
Coil
Weight
(kg) |
Speed
(1000M/Coil)
(max.) |
Average
Output
(100M/Coil /min.) |
|
C0836 |
40~80 |
Ø180~360 |
Ø100~200 |
Ø1~8 |
30 |
500M/min. |
2~2.5 |
|
C1246 |
40~120 |
Ø200~460 |
Ø100~220 |
Ø1~8 (hard)
Ø1~12 (flexible) |
30 |
500M/min. |
2~2.5 |
|
C1546 |
40~150 |
Ø200~460 |
Ø100~300 |
Ø1~8 (hard)
Ø5~12 (flexible) |
30 |
500M/min. |
2~2.5 |
|
C1560 |
60~150 |
Ø400~600 |
Ø120~300 |
Ø5~10 (hard)
Ø5~15 (flexible) |
60 |
300M/min. |
1.6 |
|
C1860 |
60~180 |
Ø400~600 |
Ø120~300 |
Ø10~20 |
60 |
300M/min. |
1.3 |
|
C1880 |
60~180 |
Ø400~800 |
Ø160~360 |
Ø10~20 |
100 |
200M/min. |
1 |
|
C2480 |
80~240 |
Ø450~800 |
Ø160~360 |
Ø15~25 |
100 |
150M/min. |
1 | * If above mentioned specification as request, please contact us for minor modification or customized design.
|
