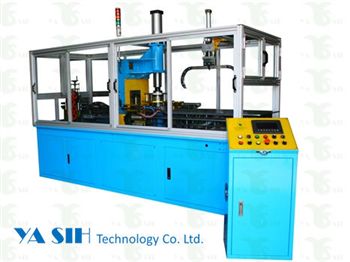

● Application A) Horizontally coiling wires from an extrusion line or pay off line, with following coil strapping, and transfer to next subsequent storage device.
B) The main function of machine includes: length counting, wire feeding to coiling head, wire coiling, cutting wire when the pre-set length is reached, and coil strapping.
● Specification Table
Model |
Height (H)
(mm) |
Outside Diameter
(O.D.) (mm) |
Inside Diameter
(I.D.) (mm) |
Cable Diameter (mm) |
Weight
(kg/coil) |
Average output
(Coil/100m / min.) |
ACS0836 |
40~80 |
Ø180~360 |
Ø100~220 |
Ø1~8 |
30 |
2~2.5 |
ACS1246 |
40~120 |
Ø200~460 |
Ø120~220 |
Ø1~12 flexible
Ø1~8 hard |
30 |
2~2.5 |
ACS1560 |
60~150 |
Ø400~600 |
Ø120~300 |
Ø5~15 |
60 |
1.6 |
ACS1860 |
60~180 |
Ø400~600 |
Ø120~300 |
Ø10~20 |
60 |
1.3 | * If above mentioned specification as request, please contact us for minor modification or customized design.
|
