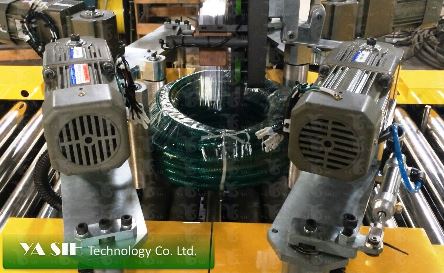

● Application A) High speed toroidal wrapping method.

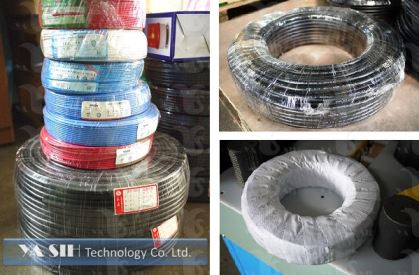

B) With connection after cable/wire coiling for packing by PE/PVC film or paper, pp woven band.
● Specification Table
Model |
Height
(mm) |
Outside Dia.
(mm) |
Inside Dia.
(mm)(min.) |
C single
side
(mm) |
Coil Weight (kgs)(max.) |
Wrapping
Material |
Width of
Packing
Material
(mm) |
Thickness
Of packing Material
(mm) |
P70 |
40~70 |
Ø200~360 |
Ø150 |
30~100 |
25 |
PVC/PE film |
45 or 55 |
0.04~0.07 |
P100 |
40~120 |
Ø220~460 |
Ø160 |
40~140 |
35 |
PVC/PE film |
45 or 55 |
0.04~0.07 |
P120 |
70~120 |
Ø220~460 |
Ø160 |
40~140 |
40 |
PVC/PE film |
45 or 55 |
0.04~0.07 |
P140 |
70~140 |
Ø300~600 |
Ø180 |
60~200 |
100 |
PVC/PE film
PP woven band
or paper |
80 or 100 |
0.04~0.07 |
P180 |
90~180 |
Ø320~600 |
Ø200 |
80~200 |
100 |
PVC/PE film
PP woven band
or paper |
80 or 120 |
0.04~0.07 |
P210 |
100~210 |
Ø400~800 |
Ø250 |
80~160 |
100 |
PVC/PE film
PP woven band
or paper |
80 or 120 |
0.04~0.07 | * If above mentioned specification as request, please contact us for minor modification or customized design.
|
