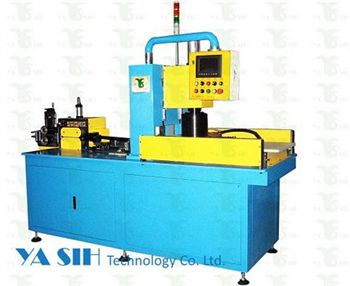

● Application
A) Horizontally coiling wires from an extrusion line or pay off and vertical accumulator.
B) The main function of machine includes: length counting, wire feeding to coiling head, wire coiling, cutting wire when the pre-set length is reached, and move the finished coil to the working plate.
● Specification Table
|
Model |
Height (H)
(mm) |
Outside Dia.
O.D. (mm) |
Inside Dia.
I.D. (mm) |
Wire/Cable Diameter (mm) |
Coil
Weight
(kg) |
Speed
(max.) |
Average
Output
(30M/Coil
/min.) |
|
SLC1030 |
40~100 |
Ø300max. |
Ø130 |
Ø3~12
(flexible) |
20 |
150M/min. |
5 |
|
SLC1046 |
40~100 |
Ø460max. |
Ø150 |
Ø3~12
(flexible) |
20 |
150M/min. |
5 | * If above mentioned specification as request, please contact us for minor modification or customized design. |
