● Application

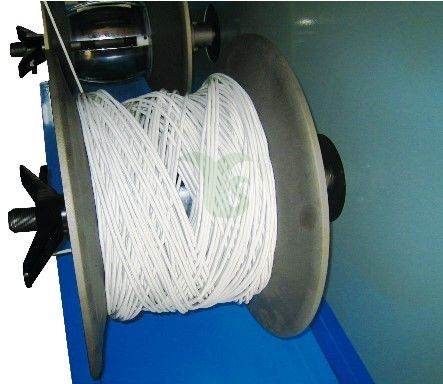

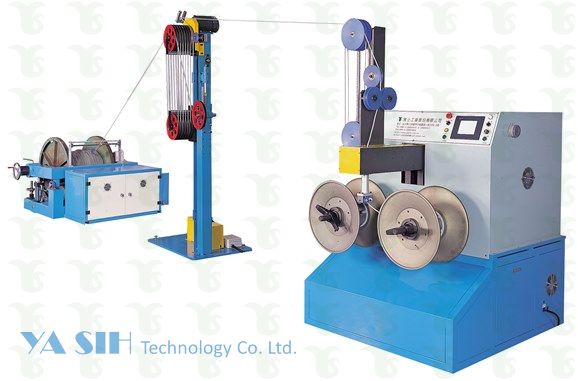

A)   Vertically winding wires from an extrusion line or pay off line.

B)   The main function of machine includes: length counting, wire traversing, wire coiling, and stop when the pre-set length is reached.

 ● Specification Table


Model	Height (H) (mm)	Outside Dia. O.D. (mm)	Inside Dia. I.D. (mm)	Line Speed (meter/min.)
DCW-2535	250	Ø350	Ø200	230
DCW-2950	290	Ø500	Ø250	250

* If above mentioned specification as request, please contact us for minor modification or customized design.
* Winding head shall be made according to the provided specs from customer.
