● Application
To be installed in an extrusion or rewinding line to accumulate or control Pay off or Take up during Reel change over.
● Specification Table

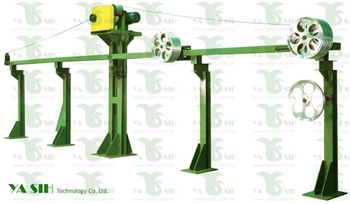

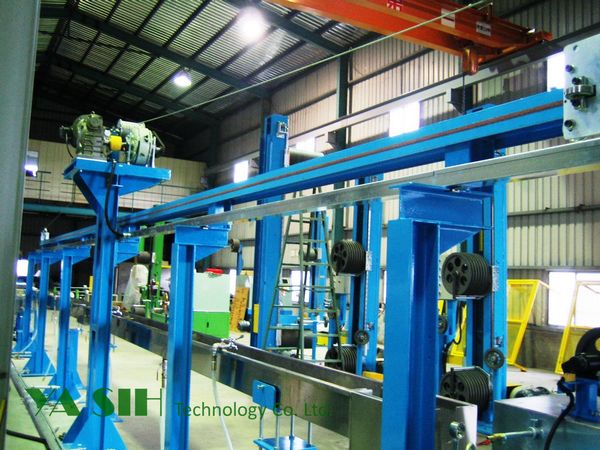

- Horizontal Accumulator :
|
Model |
Total
Length
(M) |
Acc. Pulley
Diameter (mm) |
Powder
Clutch
(kg-m) |
Number of
pulleys |
Capacity (m) |
Wire Dia. (mm) |
|
AC-0925H |
9 |
250 |
20 |
10+11 |
154 |
Ø1~ Ø4 |
|
AC-0930H |
9 |
300 |
20 |
10+11 |
154 |
Ø2~ Ø6 |
|
AC-0935H |
9 |
350 |
20 |
10+11 |
154 |
Ø4~ Ø11 |
|
AC-0940H |
9 |
400 |
20 |
9+10 |
132 |
Ø6~ Ø12 |
|
AC-0945H |
9 |
450 |
20/30 |
7+8 |
103 |
Ø10~ Ø13 |
|
AC-0950H |
9 |
500 |
20/30 |
7+8 |
103 |
Ø11~ Ø15 |
|
AC-0960H |
9 |
600 |
20 |
6+7 |
87 |
Ø12~ Ø18 |

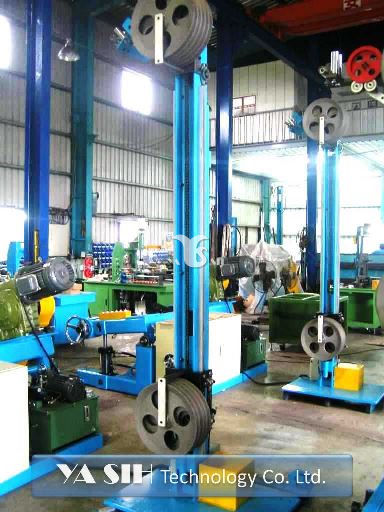

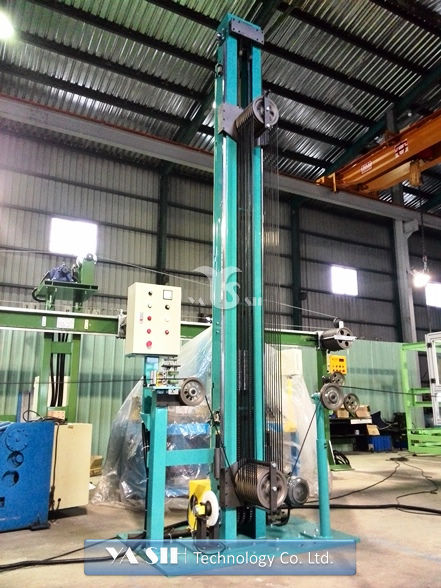

- Vertical Accumulator :
|
Model |
Length
(in height) (m) |
Acc. Pulley
Diameter (mm) |
Powder Clutch
(kg-m) |
Number of
pulleys |
Capacity (m) |
Wire Dia. (mm) |
|
AC-0325V |
3 |
250 |
10 |
4+5 |
16 |
Ø1~ Ø4 |
|
AC-0330V |
3 |
300 |
20 |
4+5 |
16 |
Ø2~ Ø6 |
|
AC-0335V |
3 |
350 |
20 |
4+5 |
16 |
Ø4~ Ø11 |
|
AC-0340V |
3 |
400 |
20 |
4+5 |
18 |
Ø6~ Ø12 |
|
AC-0345V |
3 |
450 |
20 |
4+5 |
18 |
Ø8~ Ø13 |
|
AC-0425V |
4 |
250 |
20 |
10+11 |
61 |
Ø1~ Ø4 |
|
AC-0430V |
4 |
300 |
20 |
10+11 |
60 |
Ø2~ Ø6 |
|
AC-0435V |
4 |
350 |
20 |
9+10 |
54 |
Ø4~ Ø11 |
|
AC-0440V |
4 |
400 |
20 |
7+8 |
42 |
Ø6~ Ø12 |
|
AC-0445V |
4 |
450 |
20 |
7+8 |
40 |
Ø8~ Ø13 |
|
AC-0450V |
4 |
500 |
20 |
6+7 |
36 |
Ø10~ Ø15 |
|
AC-0460V |
4 |
600 |
20 |
6+7 |
32 |
Ø12~ Ø20 | * If above mentioned specification as request, please contact us for minor modification or customized design.
|
