● Application Detect various types of wire and cable during production line, such as pinhole, cable with damaged coating, exposed copper, insulated adverse fault, highly recommended for precise quality control.
● High Frequency Type
Model |
HS-015E |
Cable Diameter |
2~12mm |
Output Voltage |
0-15 KV. |
Testing Voltage |
1.0-15.0 KV. |
Maximum load current |
Resistiveness - 4 mA. |
Capacitance |
40 mA. |
Output Wave |
3 KHz |
Electrode type |
Bead Chain |
Length |
50 mm. |
Fault Indication |
4 digits display |
Output control |
Relay contact for a fault detected |
Power source |
100-240V, Single phase, 50/60 Hz. |
Line speed |

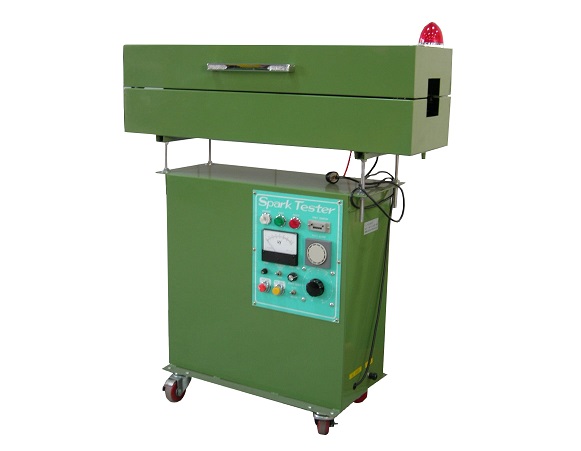

1000 M/Min. | ● Low frequency Type
Model |
IS-1530TS |
Cable Diameter |
1~12mm |
Output Voltage |
15 KV. |
Capacity |
300 VA |
Output Wave |
50/60 Hz |
Fault Indication |
4 digits display |
Output control |
Relay contact for a fault detected |
Electrode type |
Bead Chain |
Length of electrode |
600mm. |
Power source |
220V, Single phase, 50/60 Hz. |
Line speed |
300 M/Min. |
|
