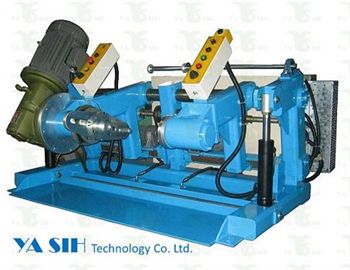

● Application For wire and cable pay off in the process of cable manufacturing or rewinding.
● Specification Table
- Pay Off Stand:
Model |
Drum Diameter
(O.D.)(mm) |
Drum Width
(I.W.)(mm) |
Load
(kg) |
Cable Dia.
(mm) |
Line Speed
(MPM) |
PF-1000K |
500~1000 |
250~750 |
1500 |
3~20 |
500 |
PF-1250K |
630~1250 |
400~950 |
2500 |
4~25 |
400 |
PF-1600K |
800~1600 |
500~1200 |
4000 |
5~30 |
400 |
PF-1800K |
1000~1800 |
600~1300 |
5000 |
6~35 |
300 |
PF-2000K |
1000~2000 |
600~1600 |
5000 |
20~40 |
200 | - Take Up Stand:
Model |
Drum Diameter
(O.D.)(mm) |
Drum Width
(I.W.)(mm) |
Load
(kg) |
Cable Dia.
(mm) |
Line Speed
(MPM) |
PF-1000K |
500~1000 |
250~750 |
1500 |
3~20 |
500 |
PF-1250K |
630~1250 |
400~950 |
2500 |
4~25 |
400 |
PF-1600K |
800~1600 |
500~1200 |
4000 |
5~30 |
400 |
PF-1800K |
1000~1800 |
600~1300 |
5000 |
6~35 |
300 |
PF-2000K |
1000~2000 |
600~1600 |
5000 |
20~40 |
200 | * If above mentioned specification as request, please contact us for minor modification or customized design.
|
